MultiBase 2072i
Car Stackers
Duplex garages & double Car STackers from KLAUS Multiparking
Inside our space-saving duplex garages, up to six cars can be parked on top of each other, even in the tightest of spaces. Different versions are available to meet your individual requirements – with or without a pit. Mobile parking platforms let you increase the number of parking spaces within the same footprint, reduce costs and free up extra space, while benefiting from flexible and secure parking.
What is a duplex garage?
The advantage of duplex garages is that they make it possible to double or triple the number of parking spaces without increasing the footprint. Vehicles are parked on top of each other by means of parking platforms, allowing you to maximise the number of parking spaces even where space is limited. Depending on the model, our duplex garages are available with or without a pit, for independent or dependent parking, and with two or three levels. Depending on the available space, you can choose between double platforms that provide two parking spaces next to each other per level, or single platforms with one parking space per level.
The advantages of a duplex garage from KLAUS Multiparking:
- A “Made in Germany” parking solution that offers unbeatable value for money
- Depending on the model, the number of parking spaces can be doubled (MultiBase 2072i / MultiBase 2078i / MultiBase 2042 / MultiBase U20 / SingleVario 2061), or tripled (MultiBase G63). In case of limited available space we also offer a single platform for 1 car (MultiBase U10)
- Premium products from a leading manufacturer and provider of parking solutions with many decades of experience
- Efficient expansion of the parking capacity for residential and commercial buildings – as outdoor parking systems or in underground and multi-storey car parks
- Can also be retrofitted depending on the structural conditions (with SingleVario 2061)
- Professional support and assistance during the planning and execution of individual projects
What is the purpose of a duplex garage?
Our duplex garages are primarily used where limited space necessitates a more efficient use of the available parking area. With our double parker models, you can double or triple your number of parking spaces economically and effectively and benefit from a parking area with a reduced footprint. Our duplex garages give you additional floor space that you can use for other purposes. The system is operated via a manual control system and a control key. If the control key is removed during the parking process, the system stops reliably and safely.
What is the difference between a duplex garage and a double car Stackers?
Even though the terms “duplex garage”, “double car stacker”, “lift parker”, multiparking system” and “duplex parker” sound like different parking technologies, they are simply the various type designations used by different manufacturers. Double car stackers, duplex parkers and duplex garages therefore serve the same purpose – to multiply your number of parking spaces via innovative parking solutions.
KLAUS Multiparking offers the following duplex garages
When choosing a duplex garage, a distinction can be made between different types and modes of operation. When it comes to deciding which one is suitable for your project, this will depend on your specific requirements and the structural conditions at the installation site.
You will find the following types of duplex garages in the KLAUS Multiparking range:
- Independent parking: Unoccupied parking platforms can be accessed independently and conveniently. This means that the parking platforms and parked cars can be retrieved and accessed at any time and independently of each other, without waiting for parking spaces to become available. A pit is required for this type of use
- Dependent parking: Also known as stack parkers. For this parking process, the lower parking space must be empty before the parking platforms can be lowered. A pit is not required for installation of the system
- With two or three levels: Up to six vehicles can be parked on top of each other
- Double platform (DP): Provides up to two parking spaces side by side per level
- Single platform (SP): Provides one parking space per level
What is the MultiBase model?
MultiBase is the latest generation of duplex garage systems from KLAUS Multiparking. With MultiBase, you get a cost-effective solution that provides the maximum possible number of parking spaces to solve existing capacity problems. This involves vertically doubling or tripling the number of parking spaces within the same footprint.
MultiBase models are suitable for:
- Family homes and apartment buildings with or without garages
- Capacity expansions in residential and commercial buildings as well as in underground and multi-storey car parks
- Outdoor parking systems, with or without a garage, in inner courtyards and front gardens
- Prefabricated garages
Our car stackers at a glance
Whether duplex garage, double car stacker or retractable garage: Our parkers offer space-saving solutions for urban spaces and every application area. Benefit from our efficient and cost-effective solutions for your reduced space requirements.
Our product range includes:

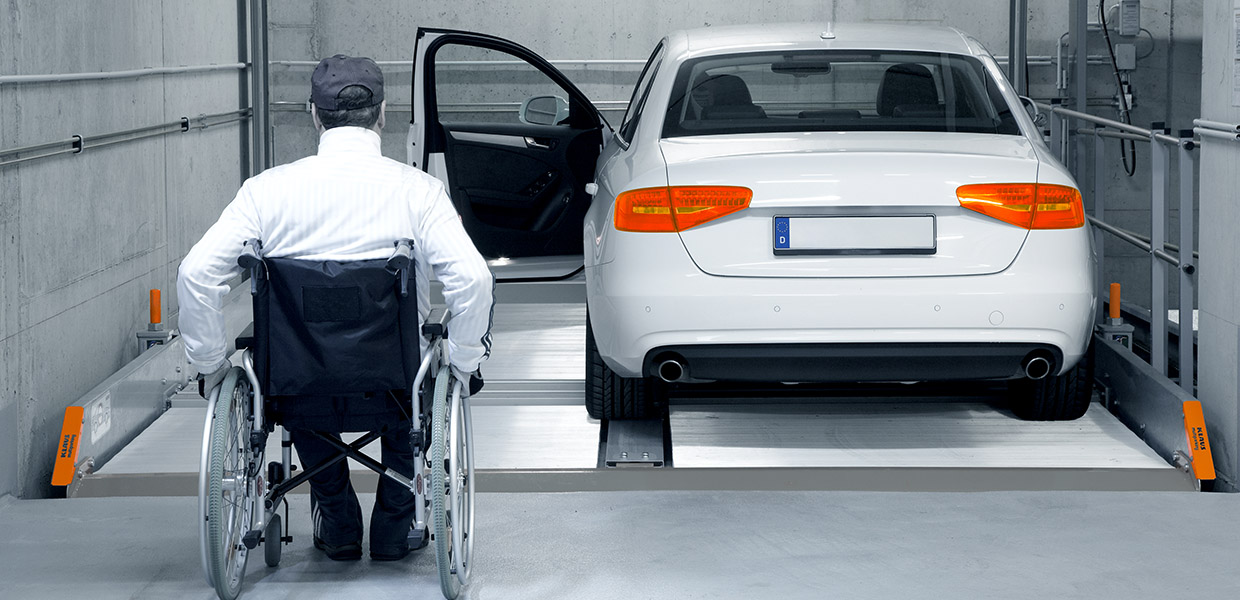

- Enables horizontal parking on all parking levels (for optimum space utilisation, cars are parked horizontally on top of each other by raising and lowering the parking levels horizontally)
- Doubles the number of parking spaces by means of a single platform (2 cars) or double platform (4 cars)
- For independent parking with a pit
- Maximum convenience and comfort when entering/exiting the vehicle
- Maximum car height 215 cm
- Also available as an outdoor system
- Maximum load: 2.6 t with single platform/double platform or 3.0 t with single platform
- Compatible with electric charging stations
- Suitable for: residential and commercial buildings, hotels as well as family homes and apartment buildings
- Doubles the number of available parking spaces by means of a single platform (2 cars) or double platform (4 cars)
- Also suitable for constructions abutting property lines
- Space-saving thanks to a 30 cm-lower installation height
- For independent parking
- Comfortable entry and exit thanks to offset steel pillars
- For cars up to 215 cm high
- Maximum load: 2.6 t with single platform/double platform or 3.0 t with single platform
- Particularly environmentally friendly and low-maintenance option thanks to electro-hydraulic synchronisation control system
- Compatible with electric charging stations
- Suitable for: constructions abutting property lines, residential and commercial buildings as well as family homes and apartment buildings
- Doubles the number of parking spaces within the same footprint
- Particularly space-saving with low pit depth and installation height
- For independent parking
- Ideal for constructions abutting property lines
- Available with single platform (2 cars) or double platform (4 cars)
- Maximum car height 154 cm
- Maximum load: 2.0 t per parking space
- Suitable for: constructions abutting property lines, residential and commercial buildings as well as family homes and apartment buildings

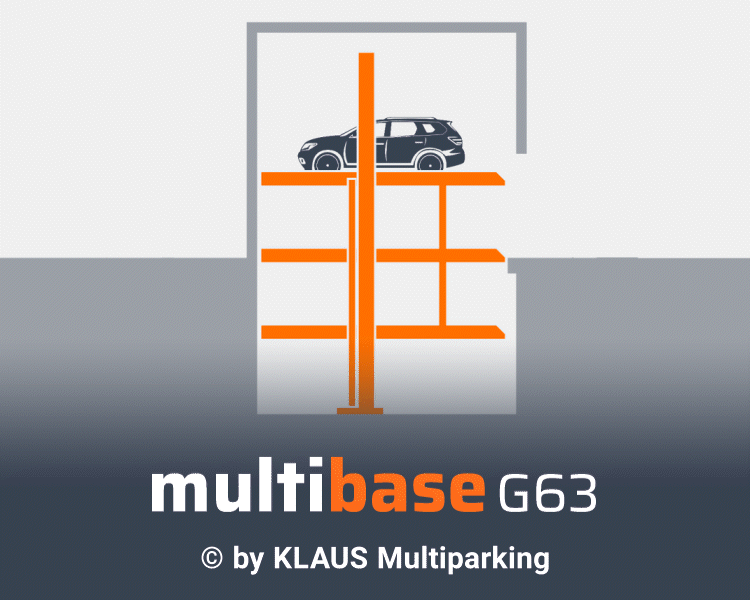

- Triples the available parking space (up to 6 parking spaces)
- For independent parking
- Horizontal parking on all parking levels
- With single platform (3 cars) or double platform (6 cars)
- Maximum vehicle height 170 cm
- Also suitable as an outdoor system
- Maximum load: max. 2.0 t per parking space or optionally max. 2.5 t with single platform
- Suitable for: residential and commercial buildings, hotels, as well as family homes and apartment buildings

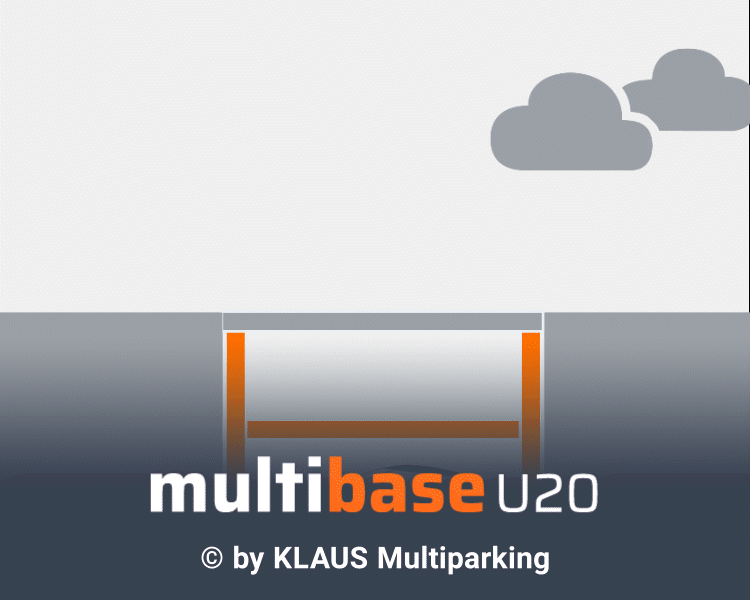

- Almost invisible as it is almost completely sunk into the ground
- Visual design options for the upper parking platform (e.g. paving stones or greenery)
- Top platform is level with the ground (every part of it can be driven on)
- MultiBase U10 single platform for 1 car, MultiBase U20 single platform for 2 cars
- Horizontal access to the parking levels
- Increases the property value through additional usable space
- For independent parking
- Maximum vehicle height 200 cm
- Maximum load: 2.0 t per parking space, optionally 2.6 t
- Suitable for: constructions abutting property lines, green spaces in residential and commercial complexes, hotels, as well as family homes and apartment buildings
- Doubles the parking spaces in a two-storey garage
- Installation without pit
- Adaptable to the prevailing structural conditions and required vehicle heights
- For dependent parking
- With single platform for 2 cars
- Maximum vehicle height 200 cm
- Distance to the parking platform also retroactively adjustable
- Horizontal access to the parking levels
- Suitable for: residential and commercial buildings, hotels, family homes and apartment buildings, as well as retrofitting
Frequently asked questions about our duplex garages
Inside a duplex garage, vehicles are stacked vertically on stable and safe parking platforms with or without a pit. Our systems are professionally tested and are based on a “dead man’s” control system. This ensures that the user can always see the system, which is brought to a stop as soon as they release the control key. High-risk areas are secured in accordance with DIN EN ISO 13857. In addition, our systems comply with DIN EN 14010 and the EC Machinery Directive 2006/42/EC. Before commissioning, a final technical approval is carried out by DEKRA/TÜV as the authorised body.
Depending on the system type, single platforms can be used to provide up to two or four additional parking spaces per duplex garage. With double platforms, this number rises to three or six extra parking spaces.
MultiBase 2072i, MultiBase 2072i Outdoor and MultiBase 2078i: Maximum vehicle height 150 to 215 cm, maximum vehicle length 500 to 520 cm.
MultiBase 2042: Maximum vehicle height 150 to 154 cm, maximum vehicle length 500 to 520 cm.
MultiBase G63 and MultiBase G63 Outdoor: Maximum vehicle height 150 to 170 cm, maximum vehicle length 500 to 520 cm.
MultiBase U10 and MultiBase U20: Maximum vehicle height 165 and/or 200 cm, maximum vehicle length 500 to 520 cm.
SingleVario 2061 and SingleVario 2061 Outdoor: Maximum vehicle height 150 to 200 cm, maximum vehicle length 500 to 520 cm.
Duplex garages are not suitable for vehicles with the following characteristics: heavier than 3.0 t, longer than 540 cm and/or taller than 215 cm.
